From - $3315.80 Options available online.

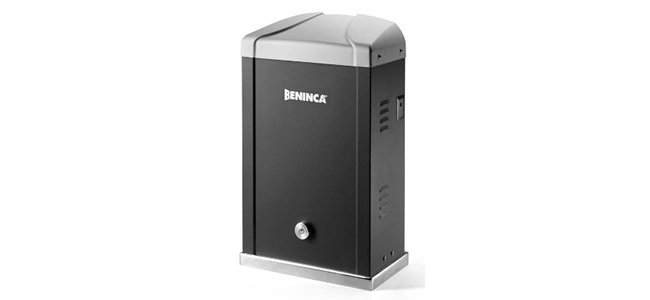

When you look for reliability in and automatic gate motor you have to look at anything Beninca and the BISON sliding gate openers are no exception. The BISON25 is a 240 volt motor designed for industrial sliding gates up to 2500kg in weight.

240 VOLT SLIDING ELECTRIC GATE OPERATOR- COMMERCIAL / INDUSTRIAL - 2500KG

Reliability of Gearmotors in oil bath

Robust, cataphoresis- treated polyester paint sheet housing for heavy-duty applications of industrial type

Manual release with key for max. security

Standard encoder (Obstacles detection sensor) for max. anti crushing operation safety

Inbuilt control unit for all demanding functions

Motor Voltage -

3 Phase motor - Only 240 volt input required

Current Standby -

100mA

Current at use -

8.0A

Motor power -

80W

Maximum thrust -

2500Nm

Operating speed -

7-19 metres per minute (adjustable)

Maximum gate size -

2500 kg

Duty cycle -

75%

Height -

612mm

Width -

333mm

Depth -

278mm

Weight -

31 Kg

IP rating -

IP44
